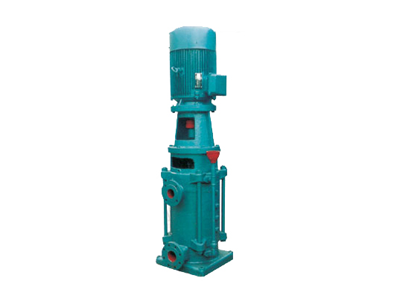

DL型立式多級泵
產品概述
?
DL型立式多級離心泵是從臥式多級離心泵基礎上進行優化設計和制造,其性能符合國家最新標準JB/T2727-93的要求。該泵吸入口與出水口分上下結構,用戶在安裝時可根據實際情況將進出口方向從垂直點上旋轉90°、180°、270°四個位置。泵軸與電機軸處在同一水平線上,密封采用機械密封裝置,軸承采用低噪音軸承,故整機運轉時噪音很低,振動很小,大大改善了使用環境,提高了使用壽命。其特點是占地面積小、揚程高、安裝、維修方便。
型號意義
使用范圍 ?
? ?
適用于高層建筑給排水,消防用泵、工廠、礦山、油田等單位輸送溫度在90℃以下清水或物理化學性質類似于水的液體。
性能參數
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 50DL | 2 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 26.6 24.4 21.2 | 1450 | 1.30 1.55 1.80 | 3 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 |
| 3 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 39.9 36.6 31.8 | 1.96 2.33 2.70 | 3 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 4 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 53.2 48.8 42.4 | 2.61 3.10 3.60 | 4 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 5 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 66.5 61 53 | 3.26 3.88 4.50 | 5.5 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 6 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 79.8 73.2 63.6 | 3.91 4.65 5.49 | 5.5 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 7 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 93.1 85.4 74.2 | 4.56 5.43 6.30 | 7.5 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 8 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 106.4 97.6 84.8 | 5.22 6.20 7.20 | 7.5 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 9 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 119.7 109.8 95.4 | 5.87 6.98 8.10 | 11 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
| 10 | 9.0 12.6 16.2 | 2.5 3.5 4.5 | 133 122 106 | 6.52 7.75 9.00 | 11 | 50 54 52 | 7.9 7.6 7.2 | 2.58 2.66 3.16 | ||
?
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 65DL | 2 | 18 30 35 | 5 8.33 9.72 | 37 32 29 | 1450 | 3.24 4.22 4.6 | 5.5 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 |
| 3 | 18 30 35 | 5 8.33 9.72 | 55.5 48 43.5 | 4.86 6.33 6.9 | 7.5 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 4 | 18 30 35 | 5 8.33 9.72 | 74 64 58 ? | 6.48 8.44 9.2 | 11 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 5 | 18 30 35 | 5 8.33 9.72 | 92.5 80 72.5 | 8.1 10.55 11.5 | 15 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 6 | 18 30 35 | 5 8.33 9.72 | 111 96 87 | 6.72 12.66 13.8 | 15 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 7 | 18 30 35 | 5 8.33 9.72 | 129.5 112 101.5 | 11.34 14.77 16.1 | 18.5 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 8 | 18 30 35 | 5 8.33 9.72 | 148 128 116 | 12.96 16.88 18.4 | 22 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 9 | 18 30 35 | 5 8.33 9.72 | 166.5 144 130.5 | 14.58 18.99 20.7 | 22 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
| 10 | 18 30 35 | 5 8.33 9.72 | 185 160 145 | 16.2 21.1 23 | 30 | 56 62 60 | 7.8 7.6 7.5 | 2.41 2.82 3.03 | ||
?
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 80DL | 2 | 32.4 50.4 65.16 | 9 14 18.1 | 43.2 40 34.2 | 1450 | 6.28 7.84 9.12 | 11 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 |
| 3 | 32.4 50.4 65.16 | 9 14 18.1 | 64.8 60 51.3 | 9.42 11.76 13.68 | 15 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 4 | 32.4 50.4 65.16 | 9 14 18.1 | 86.4 80 68.4 | 12.56 15.68 18.24 | 22 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 5 | 32.4 50.4 65.16 | 9 14 18.1 | 108 100 85.5 | 15.70 19.60 22.80 | 30 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 6 | 32.4 50.4 65.16 | 9 14 18.1 | 129.6 120 102.6 | 18.84 23.52 27.36 | 30 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 7 | 32.4 50.4 65.16 | 9 14 18.1 | 151.2 140 119.7 | 21.98 27.44 31.92 | 37 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 8 | 32.4 50.4 65.16 | 9 14 18.1 | 172.8 160 136.8 | 25.12 31.36 36.48 | 45 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 9 | 32.4 50.4 65.16 | 9 14 18.1 | 194.4 180 153.9 | 28.26 35.28 41.04 | 45 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
| 10 | 32.4 50.4 65.16 | 9 14 18.1 | 216 200 171 | 31.40 39.20 45.60 | 55 | 60.7 70 66.5 | 8.1 8 7.9 | 2.16 2.49 2.82 | ||
?
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 100DL | 2 | 72 100 126 | 20 27.8 35 | 43.4 40 34 | 1450 | 13.1 15.14 16.67 | 18.5 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 |
| 3 | 72 100 126 | 20 27.8 35 | 65.1 60 51 | 19.65 22.72 25.01 | 30 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 4 | 72 100 126 | 20 27.8 35 | 86.8 80 68 | 26.2 30.28 33.34 | 37 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 5 | 72 100 126 | 20 27.8 35 | 108.5 100 85 | 32.75 37.86 41.68 | 45 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 6 | 72 100 126 | 20 27.8 35 | 130.2 120 102 | 39.3 45.39 45.82 | 55 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 7 | 72 100 126 | 20 27.8 35 | 151.9 140 119 | 25.85 53.0 58.35 | 75 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 8 | 72 100 126 | 20 27.8 35 | 173.6 160 136 | 52.4 60.57 66.68 | 75 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 9 | 72 100 126 | 20 27.8 35 | 195.3 180 153 | 58.95 68.14 75.02 | 90 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
| 10 | 72 100 126 | 20 27.8 35 | 217 200 170 | 65.5 75.71 83.35 | 90 | 65 72 70 | 7.6 7.2 6.7 | 2.83 3.53 4.40 | ||
?
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | ||||||
| 150DL | 2 | 120 160 200 | 33.3 44.4 55.6 | 53 50 44 | 1450 | 24.1 28.7 32.8 | 37 | 72 76 73 | 3.1 3.5 3.8 |
| 3 | 120 160 200 | 33.3 44.4 55.6 | 79.5 75 66 | 36.1 43.0 49.2 | 55 | 72 76 73 | 3.1 3.5 3.8 | ||
| 4 | 120 160 200 | 33.3 44.4 55.6 | 106 100 88 | 48.1 57.3 65.7 | 75 | 72 76 73 | 3.1 3.5 3.8 | ||
| 5 | 120 160 200 | 33.3 44.4 55.6 | 133 125 110 | 60.1 71.7 82.1 | 90 | 72 76 73 | 3.1 3.5 3.8 | ||
| 6 | 120 160 200 | 33.3 44.4 55.6 | 159 150 132 | 72.2 86.0 98.5 | 110 | 72 76 73 | 3.1 3.5 3.8 | ||
| 7 | 120 160 200 | 33.3 44.4 55.6 | 186 175 154 | 84.2 100 115 | 132 | 72 76 73 | 3.1 3.5 3.8 | ||
| 8 | 120 160 200 | 33.3 44.4 55.6 | 212 200 176 | 96.2 115 132 | 132 | 72 76 73 | 3.1 3.5 3.8 | ||
| 9 | 120 160 200 | 33.3 44.4 55.6 | 239 225 198 | 108 129 148 | 160 | 72 76 73 | 3.1 3.5 3.8 | ||
